3D stereo camera · DB5000 series

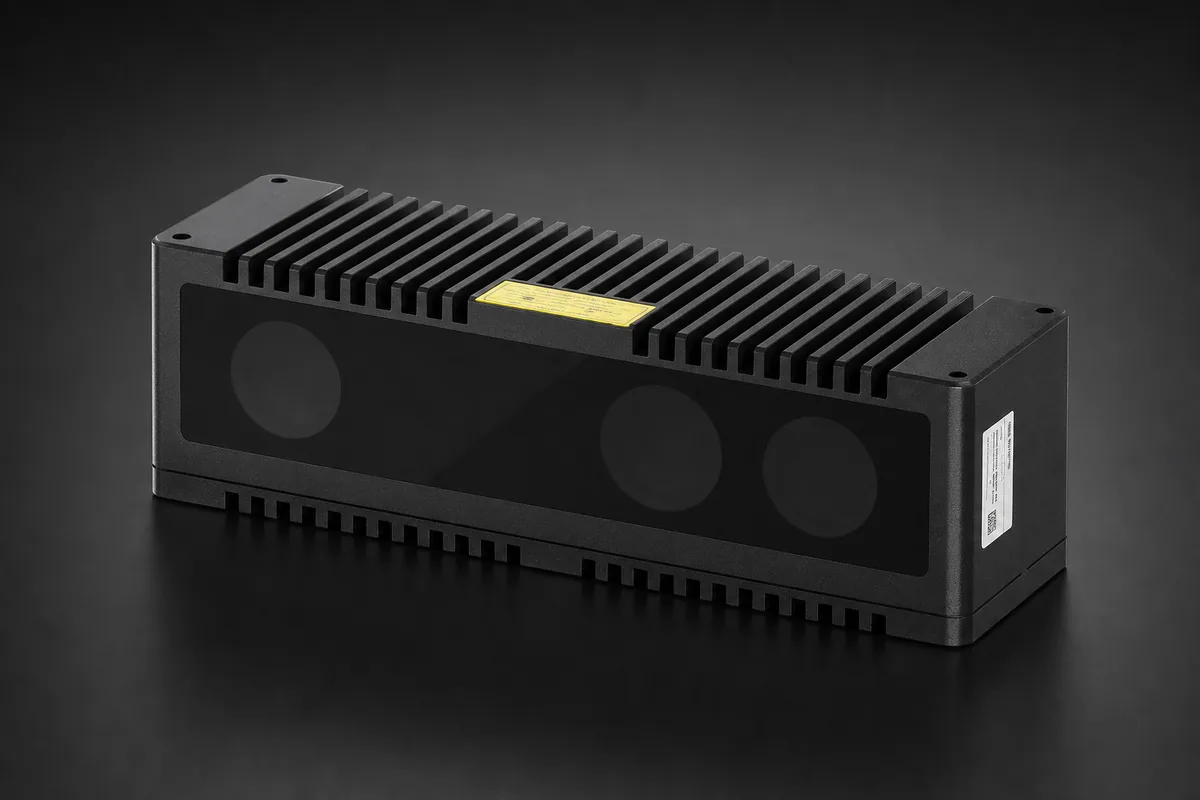

Hikrobot MV-DB500S-C_V3.0
Gigabit Ethernet (1000 Mbit/s)IP65
Цена по запросуНазовём цену и срок поставки в первом ответе инженера.
Характеристики
| Тип устройства | Single DOE Speckle Structured Light Stereo Camera |
| Частота сканирования | 30 fps |
| Интерфейс данных | Gigabit Ethernet (1000 Mbit/s) |
| Цифровые входы/выходы | 12-pin M12 interface provides power and I/O, opto-isolated input × 3, opto-isolated output × 3 |
| Операционная система | 32/64-bit Windows 7/10 |
| Питание | 12…24 VDC |
| Потребляемая мощность | 6.76 W @ 24 VDC |
| Потребление (среднее) | W |
| Класс защиты | IP65 |
| Рабочая температура | 0…45 °C |
| Температура хранения | -30…80 °C |
| Влажность | 20% to 85% RH |
| Габариты | 184 × 55 × 53 mm |
| Вес | 700 g |
| Отрасли применения | Cross-belt empty detection, double-edge detection, over-edge detection, position correction |
| Near field of view | 580 × 470 mm |
| Far field of view | 2500 × 1800 mm |
| Clearance distance | 500 mm |
| Measurement range | 1500 mm |
| Object detection range at 700 mm installation height | 50 × 50 × 10…450 × 450 × 200 mm |
| Object detection range at 1800 mm installation height | 100 × 100 × 10…1000 × 1000 × 700 mm |
| Depth image detection accuracy | Z: 4 @ 1 m; 8 @ 2 m mm |
| Depth resolution | 1408 × 1024 px |
| Depth frame rate | 30 fps |
| Rgb resolution | 1526 × 1280 px |
| Rgb frame rate | 30 fps |
| Класс лазерной безопасности | Class 1 |
| Object detection range 700mm installation | 50 mm × 50 mm × 10 mm to 450 mm × 450 mm × 200 mm |
| Object detection range 1800mm installation | 100 mm × 100 mm × 10 mm to 1000 mm × 1000 mm × 700 mm |
| Depth image detection accuracy xy | mm |
| Depth image detection accuracy z | mm |
| Color image detection accuracy xy | mm |
| Data type | Original image (mono and color images), depth image, EDP detection result |
